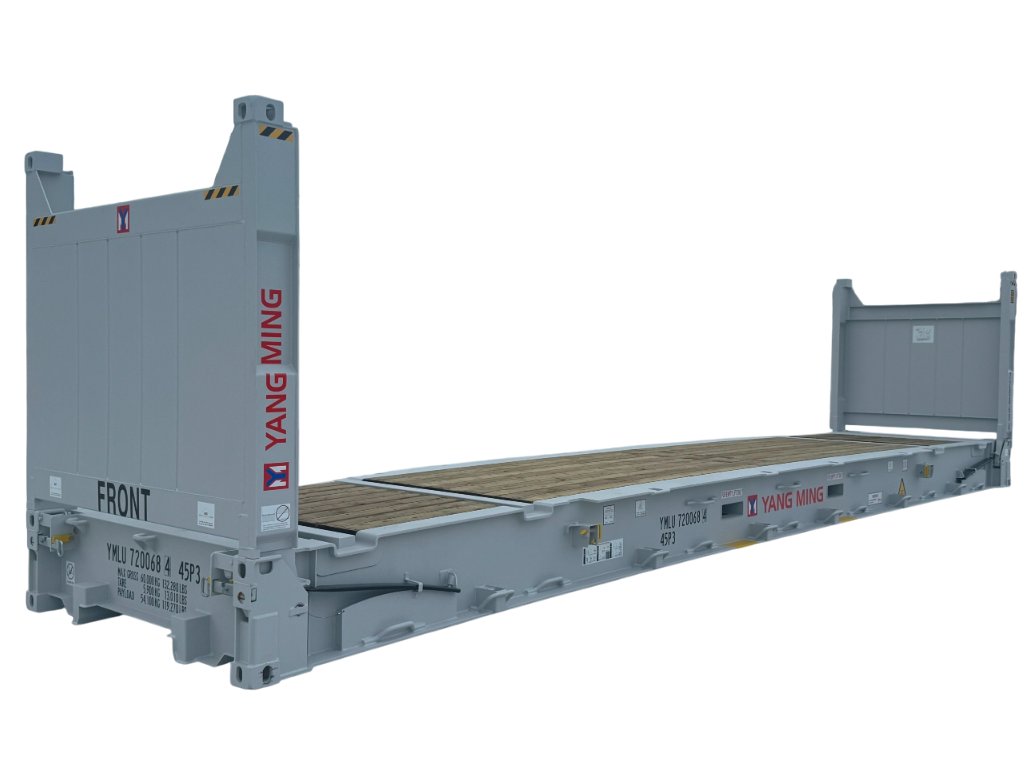

40' 框架箱(A)
  • YMLU720001 - 720550
  • 40' * 8' * 9'6" SUPER HEAVY FLAT RACK
  • * The units folds 4 into an 8'6" high module
Weight
Tare 5,900 kgs 13,010 lbs
Payload 54,100 kgs 119,270 lbs
Gross Weight 60,000 kgs 132,280 lbs
Cargo Capacity
62.6 cu.m. 2,211 cu.ft.
Opening
Width Between stanchion pockets
2,204 mm 7' 2.8"
Height From base to top face of top corner castings
2,264 mm 7' 5.1"
Collapsed as platform
648 mm 2' 1.5"
Length Between front/after cross rails
11,984 mm 39' 3.8"
Between corner posts
11,652 mm 38' 2.8"
Between the feet of corner post
11,624 mm 38' 1.6"
Measure Overall Inside
Length 12,192 mm 40' 11,652 mm 38' 2.8"
Width 2,438 mm 8' 2,374 mm 7' 9.5"
Height 2,896 mm 8' 9" 2,264 mm 7' 5.1"

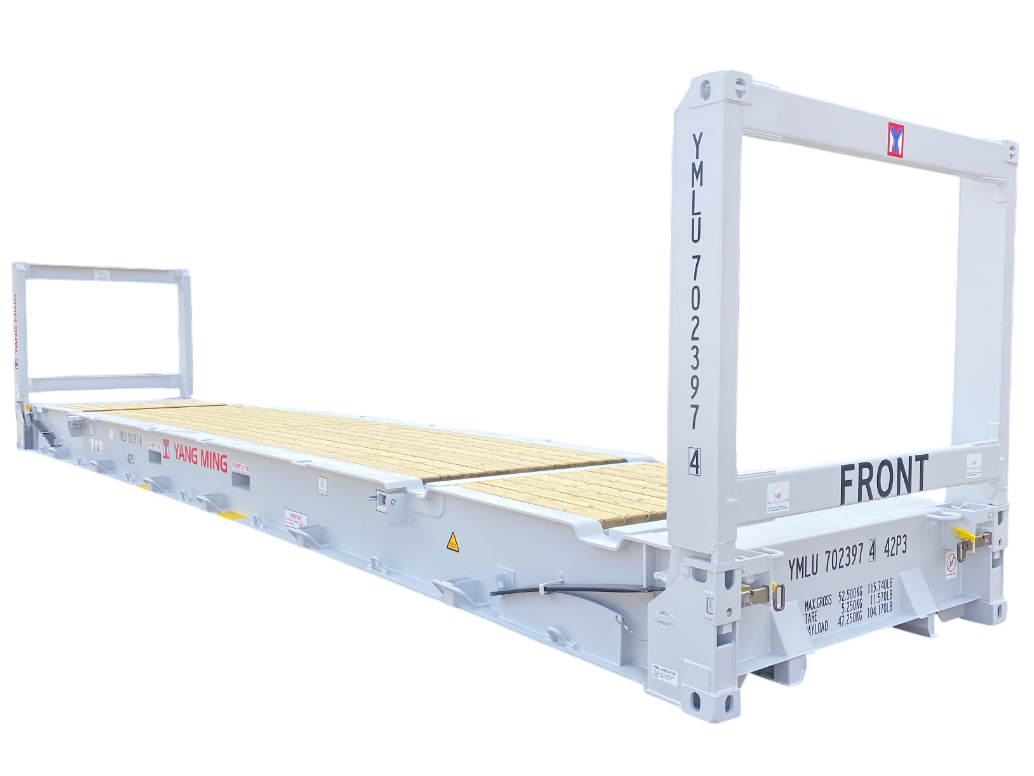

40' 框架箱(B)
  • YMLU702020 - 703019
  • 40' * 8' * 8'6" FLAT RACK
  • * The units folds 4 into an 8'6" high module
Weight
Tare 5,250 kgs 11,570 lbs
Payload 47,250 kgs 104,170 lbs
Gross Weight 52,500 kgs 115,740 lbs
Cargo Capacity
54.3 cu.m. 1,917.6 cu.ft.
Opening
Width Between stanchion pockets
2,210 mm 7' 3"
Height From base to top face of top corner castings
1,957 mm 6' 5.1"
Collapsed as platform
648 mm 2' 1.5"
Length Between front/after cross rails
12,054 mm 39' 6.5"
Between corner posts
11,652 mm 38' 2.8"
Between the feet of corner post
11,595 mm 8' 0.5"
Measure Overall Inside
Length 12,192 mm 40' 11,652 mm 38' 2.8"
Width 2,438 mm 8' 2,380 mm 7' 9.7"
Height 2,591 mm 8' 6" 1,957 mm 6' 5.1"
40' 框架箱(C)
  • YMLU700520 - 702019
  • 40' * 8' * 8'6" FLAT RACK
  • * The units folds 4 into an 8'6" high module
Weight
Tare 4,900 kgs 10,800 lbs
Payload 40,100 kgs 88,410 lbs
Gross Weight 45,000 kgs 99,210 lbs
Cargo Capacity
51.7 cu.m. 1,826 cu.ft.
Opening
Width Between stanchion pockets
2,204 mm 7' 2.8"
Height From base to top face of top corner castings
1,959 mm 6' 5.1"
Collapsed as platform
648 mm 2' 1.5"
Length Between front/after cross rails
11,988 mm 39' 4"
Between corner posts
11,772 mm 38' 7.5"
Between the feet of corner post
11,688 mm 38' 4.2"
Measure Overall Inside
Length 12,192 mm 40' 11,988 mm 38' 7.5"
Width 2,438 mm 8' 2,374 mm 7' 9.5"
Height 2,591 mm 8' 6" 1,959 mm 6' 5.1"
