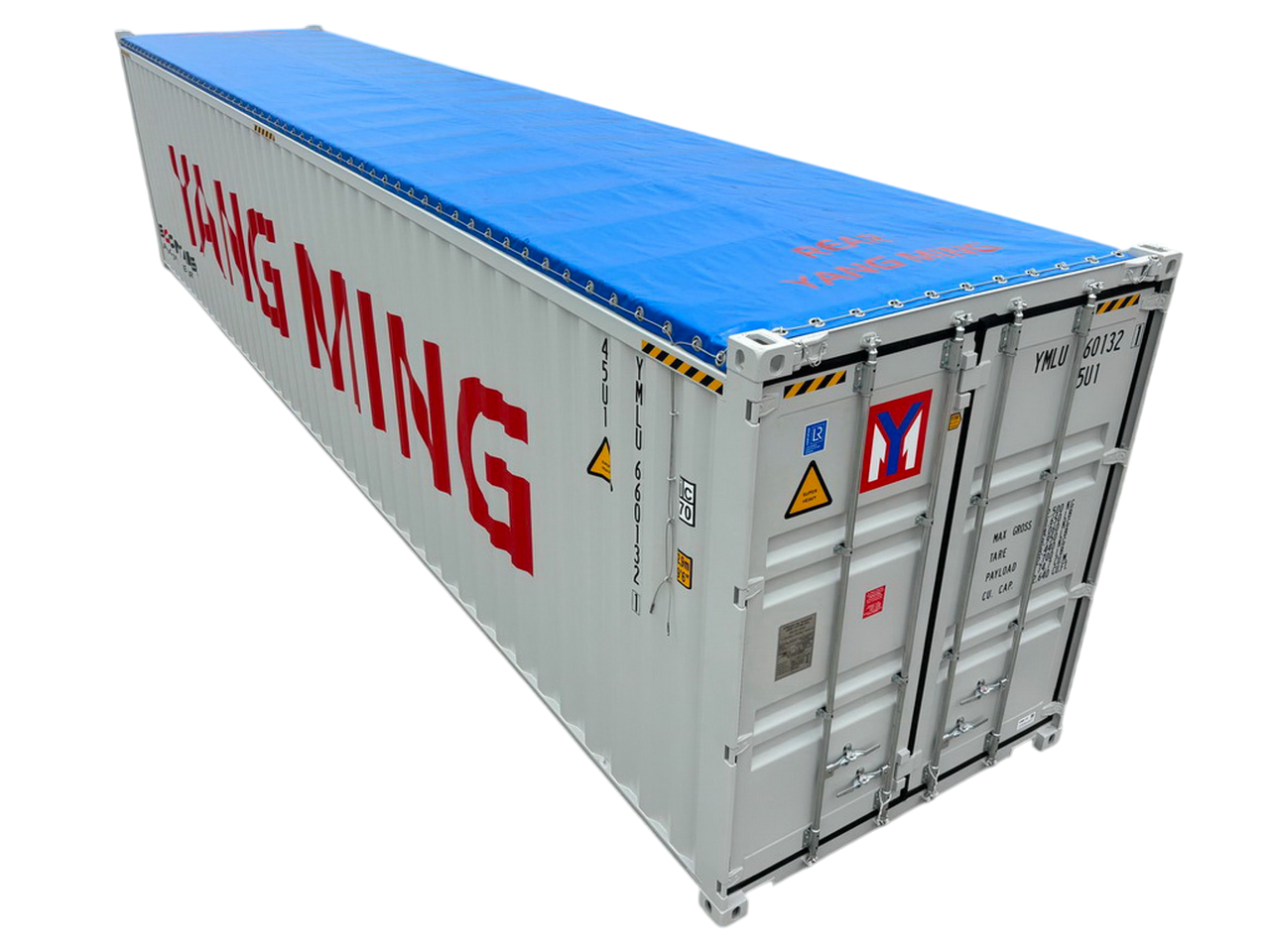

40' 开顶箱
  • YMLU640930 - 643379
  • 40' * 8' * 8'6" OPEN TOP
Weight
Tare 4,030 kgs 8,880 lbs
Payload 26,450 kgs 58,320 lbs
Gross Weight 30,480 kgs 67,200 lbs
Door Opening
Width 2,340 mm 7' 8.1"
Height 2,280 mm 7' 5"
Inside Cubic 65.9 cu.m. 1,150 cu.ft.
Roof Opening
Length Between front top rail and Door header
11,530 mm 37' 10"
Width Between top side rail
2,232 mm 7' 3.9"
Between stubs when header removed
1,940 mm 6' 4.3"
Measure Overall Inside
Length 12,192 mm 40' 12,032 mm 39' 5.5"
Width 2,438 mm 8' 2,352 mm 7' 8.6"
Height 2,591 mm 8' 6" 2,348 mm 7' 7.7"
40' 开顶箱
  • YMLU660001~660600
  • 40' * 8' * 9'6" OPEN TOP
Weight
Tare 4,060 kg 8,950 lbs
Payload 28,440 kg 62,700 lbs
Gross Weight 32,500 kg 71,650 lbs
Door Opening
Width 2,340 mm 7' 8.1"
Height 2,585 mm 8' 5.8"
Inside Cubic 74.7 cu.m. 2,640 cu.ft.
Roof Opening
Length Between front top rail and Door header
11,806 mm 38' 8.8"
Width Between top side rail
2,232 mm 7' 3.9"
Between stubs when header removed
1,940 mm 6' 4.3"
Measure Overall Inside
Length 12,192 mm 40' 12,032 mm 39' 5.5"
Width 2,438 mm 8' 2,352 mm 7' 8.6"
Height 2,896 mm 9' 6" 2,653 mm 8' 8.4"
